Hisense 32H3E EEPROM UF1 for TV not powering on


If your Hisense 32H3E has a red front LED, but does not respond to power on command then you may need this kit CTVRL-NO-PB-0078.

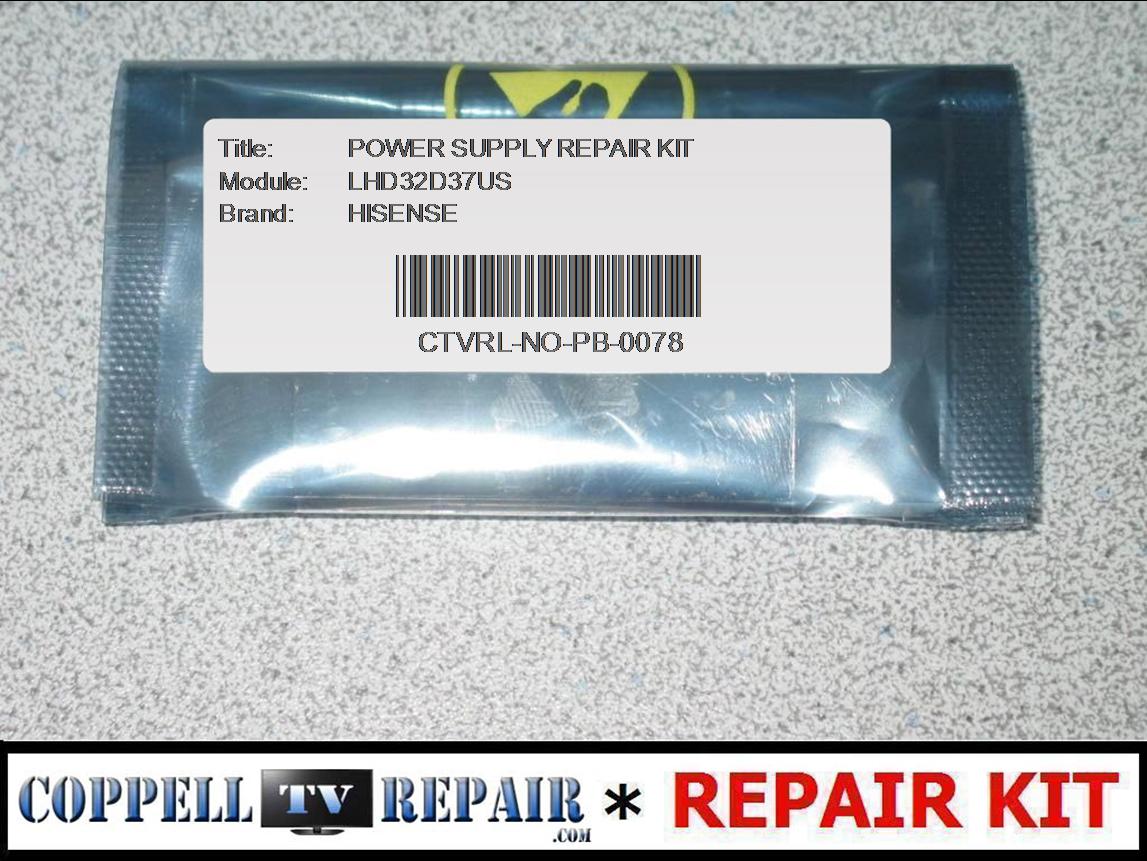

Coppell TV Repair LLC offers repair kit CTVRL-NO-PB-0078 for a problem we have seen and successfully repaired in Hisense 32H3E LED TV main board LHD32D37US.

The failure symptom we've seen is a TV that has a red LED on, but does not respond to power on command.

The culprit turned out to be the UF1 EEPROM memory on the main board, which is what the kit contains.

Since the EEPROM is responsible for so much more than turning on the TV it is possible that other failure symptoms may be addressed by it too...but this is the one we've experienced and advertise it for.

Similarly, chances are that there are other issues on the board that may cause the same failure symptom, e.g. a failed main processor or oscillator would result in the same.

As such we can not be certain and do not warrant this kit will fix your problem.

IMPORTANT!!! HISENSE 32H3E HAS DIFFERENT BATCHES UTILIZING DIFFERENT LCD PANELS INSIDE. THOSE DIFFERENT PANELS REQIRE DIFFERENT HANDLING AND THIS IS WHY IT IS CRUCIAL THAT YOU CHOOSE THE CORRECT EEPROM VERSION.

THE EASIEST WAY TO FIND THAT IS BY LOOKING AT THE SERIAL NUMBER OF THE PARTICULAR TV THAT IS BEING REPAIRED AND CHOOSE FROM THE OPTIONS ACCORDINGLY; LET US KNOW IF YOUR TV'S S/N IS NOT LISTED!

WARRANTY CONDITIONS

Coppell TV Repair LLC does not guarantee that this product is all that is needed to resolve the problems with your TV.

Most of the repair kits we offer are based on first hand experience servicing boards at our repair facility.

Over time they may get expanded with our own experience or information from manufacturer service bulletins, customer feedback etc.

Yet failure can be unique and there can not be guarantee that what has worked one, ten or even hundred times will also work the next one.

Just as important, every repair involves about equal portion of quality of parts and quality of worksmanship and as we have no control over the worksmanship quality unless we are the ones performing it we would be unwise to provide warranty of the products utilized by that worksmanship.

As such, no warranty is offered on this product once the components in it are soldered on a board.

If you would like warranty please see if a REPAIR SERVICE is offered instead of a kit. Unless otherwise noted all our repair services do come with a standard warranty.

SHIPPING AND HANDING

Normally ships within 1 business day. Unexpected delays may occur, but if we can't ship within 3 business days we will contact you or/and cancel the order.

We try to ship every business day M-F and, for USPS shipments, Saturday as well.

Items under 14 oz are normally shipped with USPS First Class mail unless other option was available and chosen during checkout.

Packages of 1 lb. and above are shipped USPS Priority, FedEx Ground/Home, subject to our decision.

ATTENTION INTERNATIONAL CUSTOMERS: If your order is accepted by our store and your address is outside United States you may not be able to track package delivery progress once it leaves the country. The United States Postal Service (USPS) does not provide tracking information to some countries unless the shipment is the most expensive Express type, which is usually too expensive to justify using. You can accept that condition and strip Coppell TV Repair LLC of responsibility to the delivery status of your package provided we show it was shipped and processed by a courier in a timely manner. Or you can contact us prior to ordering and inquiry for delivery confirmation shipping method, which, again, usually costs an arm and a leg compared to the simple USPS First Class shipping.


You can see the related video we've made and published in our YouTube channel:



32H3E serial starting with 32J1427
$12.95
:
32H3E serial starting with 32J1415 or 32J1421
$12.95
:
