Repair kit for BN44-00342B power supply Samsung LN55C610N1FXZA, LN55C650L1FXZA, LN55C630K1FXZA, LN55C750R2FXZA - totally dead or no back light

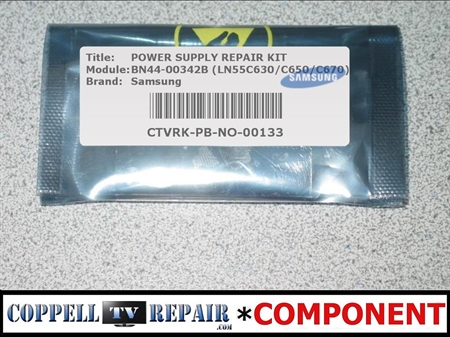

Coppell TV Repair LLC is offering a repair kit for failures in Samsung power supply / inverter board BN44-00342B as shown on the picture and used in Samsung LCD TV models LN55C610N1FXZA, LN55C650L1FXZA, LN55C630K1FXZA and LN55C750R2FXZA.

FAILURE SYMPTOMS

The kit contains parts that address different failures with different failure symptoms.

Failure 1: TV is totally dead; main fuse may be open or close (it is normal, i.e. not blown open, in the incident shown on the below video 1), but there is no standby output voltage and visual inspection.

Failure 2: The TV being able to be turned on and staying on, but with no image or even backlight to the LCD panel (no glow coming from display in a dark room); measuring voltage on mains filter capacitors shows steady 168V and not 380V as it should once the power supply is activated:

KIT CONTENTS

Replacement components for FS801S, ICM801, DM809, DP810, CP820 and possibly others (subject to additional information that we can gain over time).
All components are brand new and same or better ratings than the OEM installed ones.
ICM801 may have shorter legs than necessary and you may need to patch them using legs from another component or wires.

%Sale.Kit.Difficulty.Medium%

SHIPPING AND HANDING

Products will usually ship on the next business day after purchase is placed and paid. Unexpected delays may occur. If you do not receive a tracking number or message from us within 3 business days after purchasing please contact us.

When shipping method is specified during payment it is our first choice to utilize that method for shipping.
Yet sometimes it is not possible or may result in delays, e.g. a late Friday FedEx shipping of inexpensive and durable product may have a chance of being shipped in Friday than the following Monday; in such cases we reserve the right to substitute FedEx Ground with USPS Priority and, in some very rare cases, USPS First Class service. If shipping costs differ significantly you are in your right to contact and request price adjustment.

When shipping option for the order is "Free shipping" we will usually utilize cheapest available method.
See below for important disclaimer regarding the USPS First Class Mail packages.

We do not advertise delivery time and do not take responsibility for delays to packages as long as tracking information proves they have been shipped in a timely manner by us.

Be advised that the following delivery services are NOT insured per USPS policy:

• Domestic: USPS First Class;
• International: First-Class Package International™, Priority Mail International® Flat Rate Envelopes and Priority Mail International® Small Flat Rate Boxes; services to some countries may also not be covered, for details read the USPS article on the subject.

What this means is that if you choose any of the above services as your delivery method you agree to hold us free of claims against loss of value should your package gets damaged or lost in the carrier system as long as the tracking information by the carrier shows the package was accepted by them and processed into their system.

WARRANTY CONDITIONS

Coppell TV Repair LLC does not guarantee that this product is all that is needed to resolve the problems with your TV.

Most of the repair kits we offer are based on first hand experience servicing boards at our repair facility.

Over time they may get expanded with our own experience or information from manufacturer service bulletins, customer feedback etc.

Yet failure can be unique and there can not be guarantee that what has worked one, ten or even hundred times will also work the next one.

Just as important, every repair involves about equal portion of quality of parts and quality of worksmanship and as we have no control over the worksmanship quality unless we are the ones performing it we would be unwise to provide warranty of the products utilized by that worksmanship.

As such, no warranty is offered on this product once the components in it are soldered on a board.

If you would like warranty please see if a REPAIR SERVICE is offered instead of a kit. Unless otherwise noted all our repair services do come with a standard warranty.
