Coppell TV Repair LLC is offering repair kit for a common failure developing in the Y-Main board LJ92-01689A / LJ92-01689B used in Samsung PN50B400P3DXZA, Samsung PN50B430P2DXZA, Samsung PN50B450B1DXZA, Insignia NS-P501Q-10A and possibly other plasma TV models.
FAILURE SYMPTOMS
KIT CONTENTS

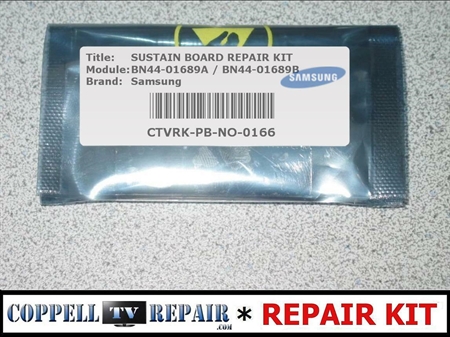

Brand new replacement components for Q5101, Q5403, Q5303, Q5402, R5402 (3 Ohm), R5407 and D5406.
More components may be added over time subject to our experience and feedback from customers.
There are no instructions supplied with the kit; this listing should be sufficient to help identify components and applications.
If you receive more parts than the above listed or are otherwise confused please do not hesitate to contact us. We will try to help the best we can, but please bear in mind we do not offer educational courses in electronic repairs :-)
Notes:
1) Sometimes Q5403 is the only shorted transistor and replacing it may bring the board back to life; we still recommend replacing other power transistors, but there's no need to replace the small SMD resistors if the according power transistors have not failed.
2) The board is know to develop bad solder joints as the lead free solder ages; be sure to inspect and reflow joints on other power components!
DIFFICULTY LEVEL
Easy to medium. Generic soldering equipment should allow doing the job.
Patience and attention are always recommended.
Improper handling may cause additional damage. If you are not certain you can undertake the service consider using our repair services instead.
